PTS Prototypenteile und System Technik GmbH
Forming what moves the world

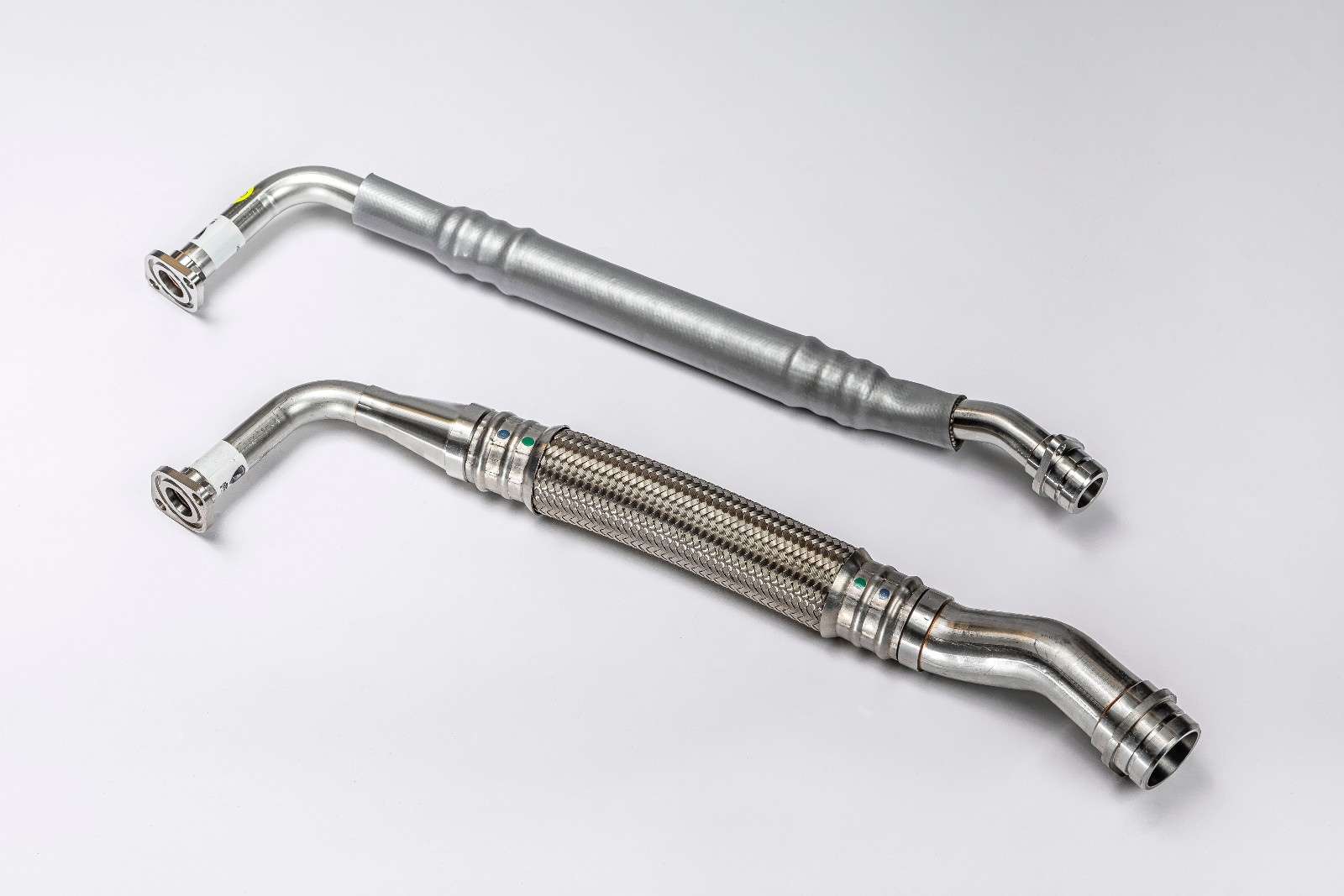

We are pleased to have you visit us. Our PTS Prototypenteile und System Technik GmbH is situated located in the catchment area of the automotive industry near Stuttgart. Since 2006, we have been focusing on the development, production, and testing of vehicle components, especially exhaust systems and media-carrying components. We manufacture prototypes as well as small series for passenger cars (including racing vehicles), commercial vehicles, as well as air, water, or rail vehicles.

PTS Prototype Parts and Systems Engineering is your development partner and manufacturing specialist for complex metal components, assemblies and system solutions. From the initial product concept through design and simulation to prototype production, series production and quality assurance, we support our customers throughout the entire product development process.

Our core competence lies in the development and manufacture of high-precision tubular and sheet metal components, as well as systems subjected to high thermal loads. With an exceptionally high level of vertical integration, state-of-the-art manufacturing technologies and decades of experience, we deliver cost-effective solutions for the automotive, motorsport, commercial vehicle and mechanical engineering sectors, as well as numerous other industries.

Whether it’s a single part, a prototype or a series-produced item – we combine engineering expertise with industrial manufacturing to create technically sophisticated solutions that meet the highest quality standards.

Our Areas of Expertise
From development to a production-ready product, PTS provides you with all services under one roof. The close integration of all company divisions ensures short lines of communication, fast development cycles, and a high degree of process reliability.

_____________________________________________________________________________________________________________________________

Development & Design

Our engineers develop production-ready components and assemblies, taking into account function, installation space, materials, loads, and cost-effectiveness. The design process is supplemented by modern simulation methods such as CFD calculations, operational vibration analyses (BSA), hydroforming and deep-drawing simulations, and thermomechanical analyses.

                                                     >>> More about Development & Design

Prototyping
Thanks to in-house design, our own toolmaking capabilities, modern manufacturing technologies, and quick decision-making processes, functional prototypes can be produced within a few weeks. Components can be validated and optimized under real-world conditions as early as the initial stages of development.

                                                     >>> More about prototyping

Series production
From small batch sizes to demanding mass-production projects, we manufacture cost-effectively, consistently, and to a consistently high standard of quality. Our manufacturing processes are designed for maximum process reliability and repeatability.

                                                    >>> More about series production

Quality assurance
Precision doesn't end with manufacturing. State-of-the-art CNC coordinate measuring machines, optical measuring systems, bending scanners, leak tests, and comprehensive material and surface inspections ensure consistently high quality throughout the entire production process.

                                                    >>> More about quality assurance

State-of-the-art machinery – maximum in-house production capacity for maximum flexibility

Our machinery forms the heart of an efficient and integrated manufacturing process. Thanks to state-of-the-art production facilities, our in-house toolmaking department and the close integration of development, manufacturing and quality assurance, we are able to produce even the most complex components efficiently and cost-effectively.

Whilst many companies have to outsource individual production steps to external service providers, at PTS the majority of value creation takes place in-house. Our manufacturing processes interlock seamlessly, enabling us to produce high-quality tubular, sheet metal and metal components from a single source. Thanks to our in-house design department, internal toolmaking facility and state-of-the-art measurement technology, adjustments can be implemented quickly and development times significantly reduced.

Find out more about our manufacturing technologies:

• Milling – Precision CNC machining of tools, jigs and components.

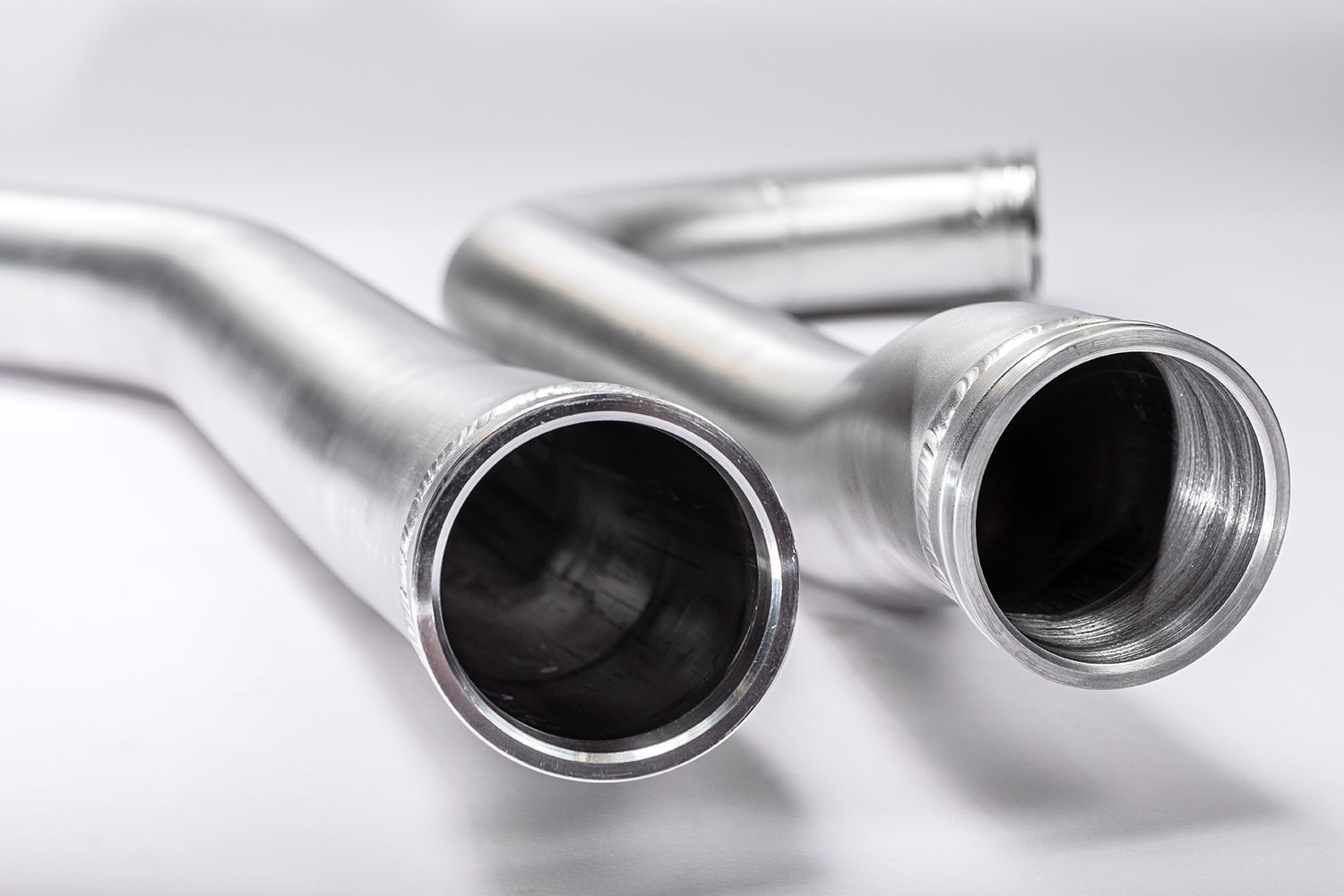

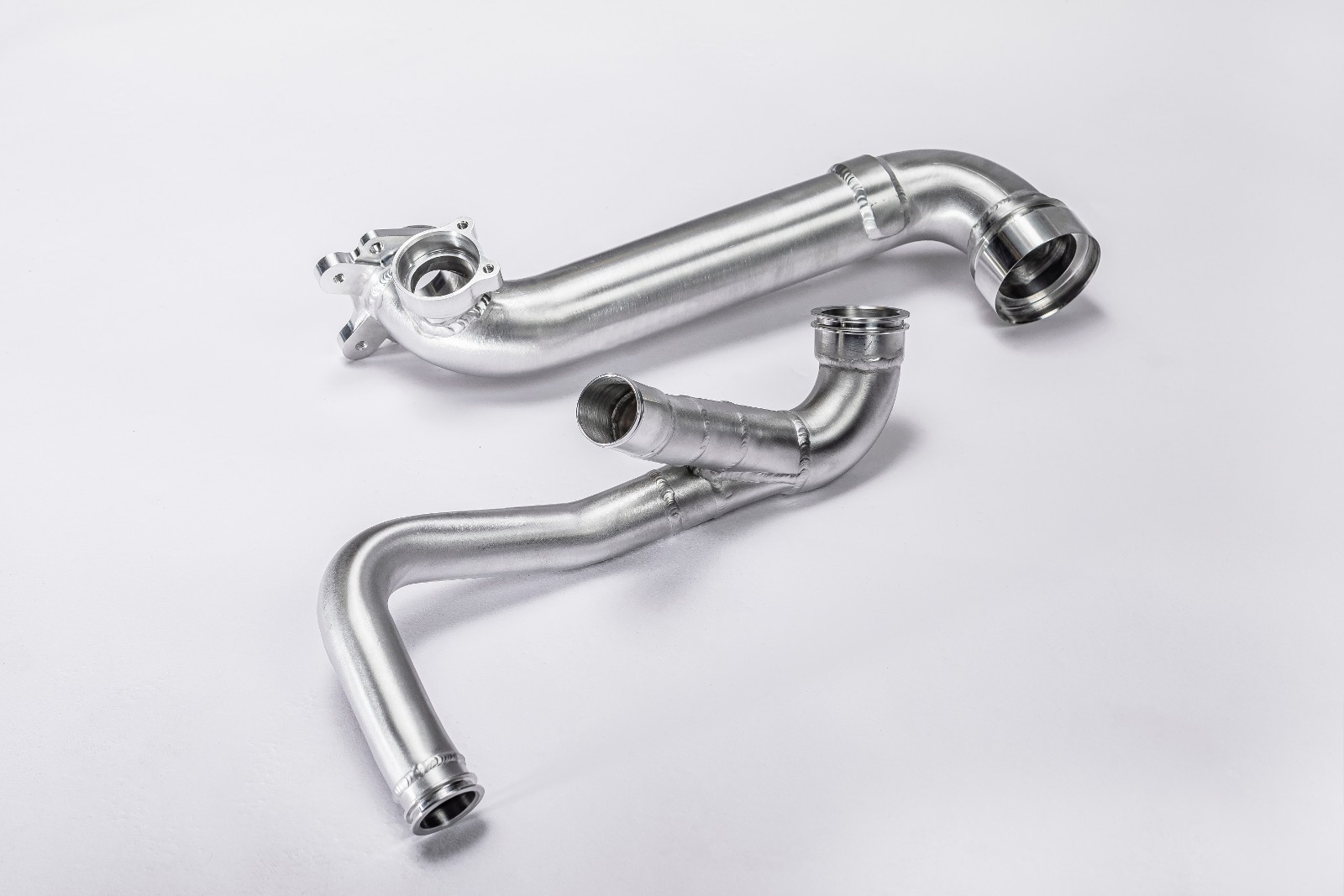

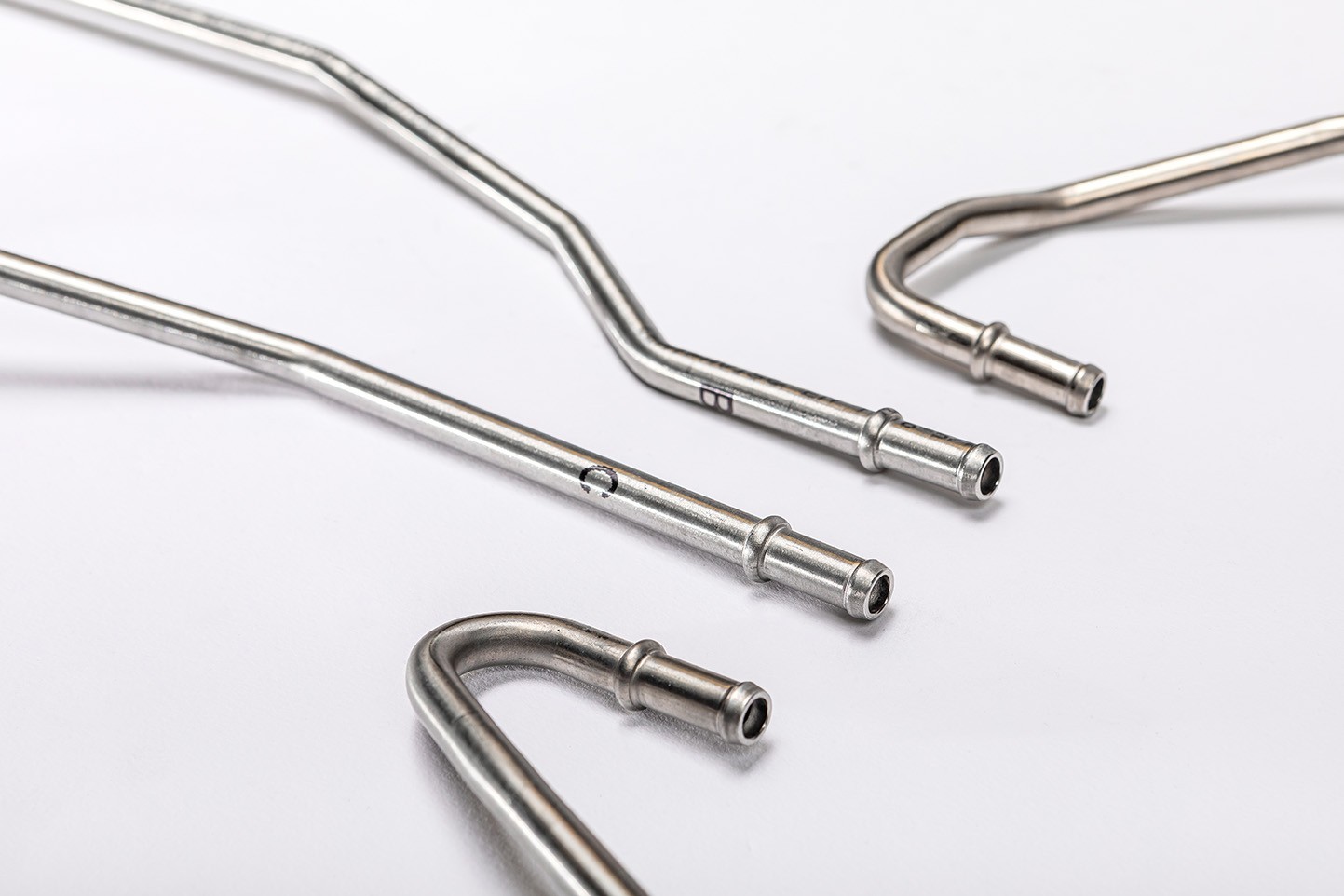

• Tube bending – CNC mandrel bending and right/left bending for complex tube geometries.

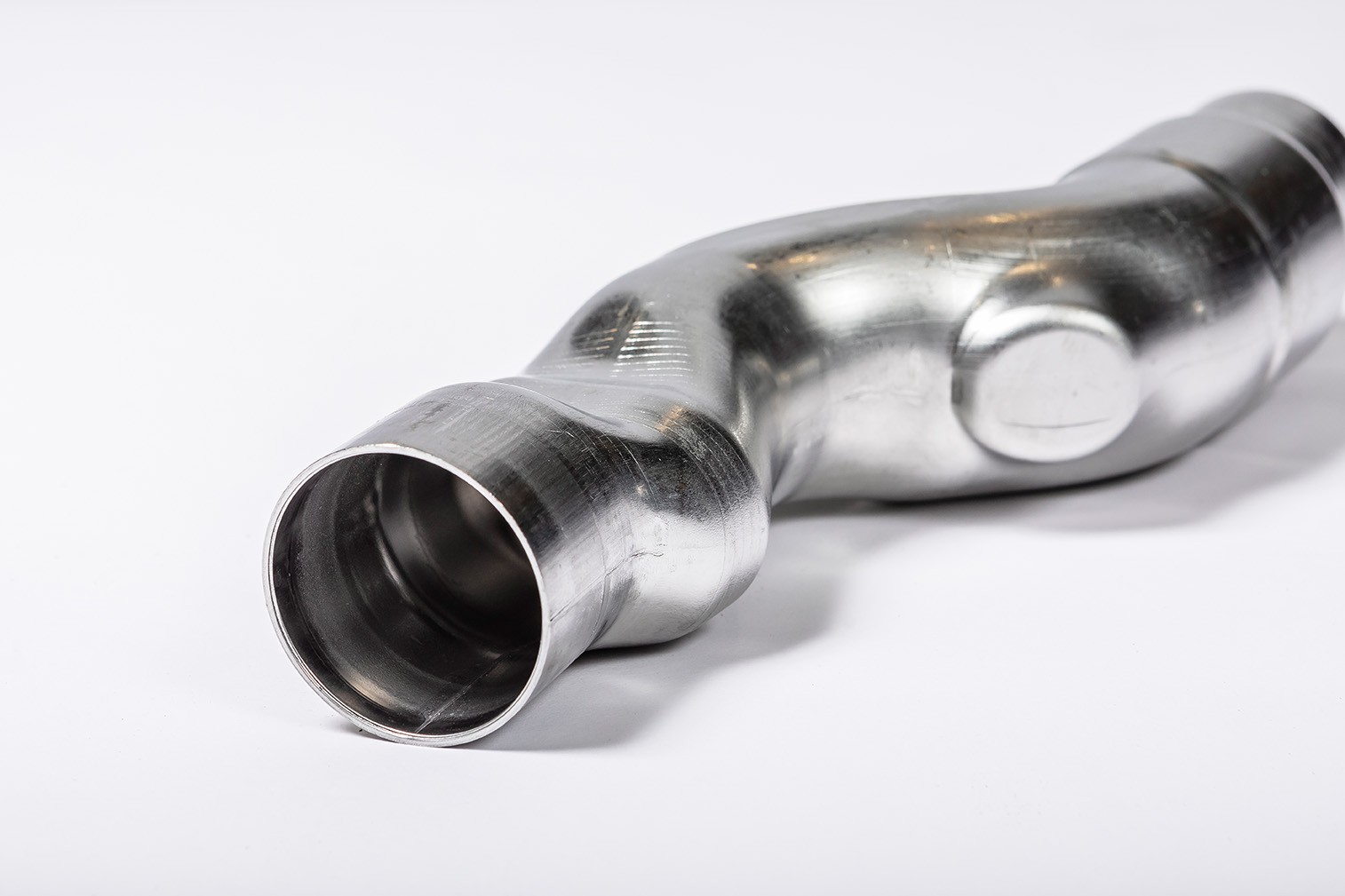

• Hydroforming – Internal high-pressure forming for high-strength and complex hollow sections.
• 2D- & 3D-lasercutting – Precision cutting of sheet metal, tubes and three-dimensional components using state-of-the-art laser technology.

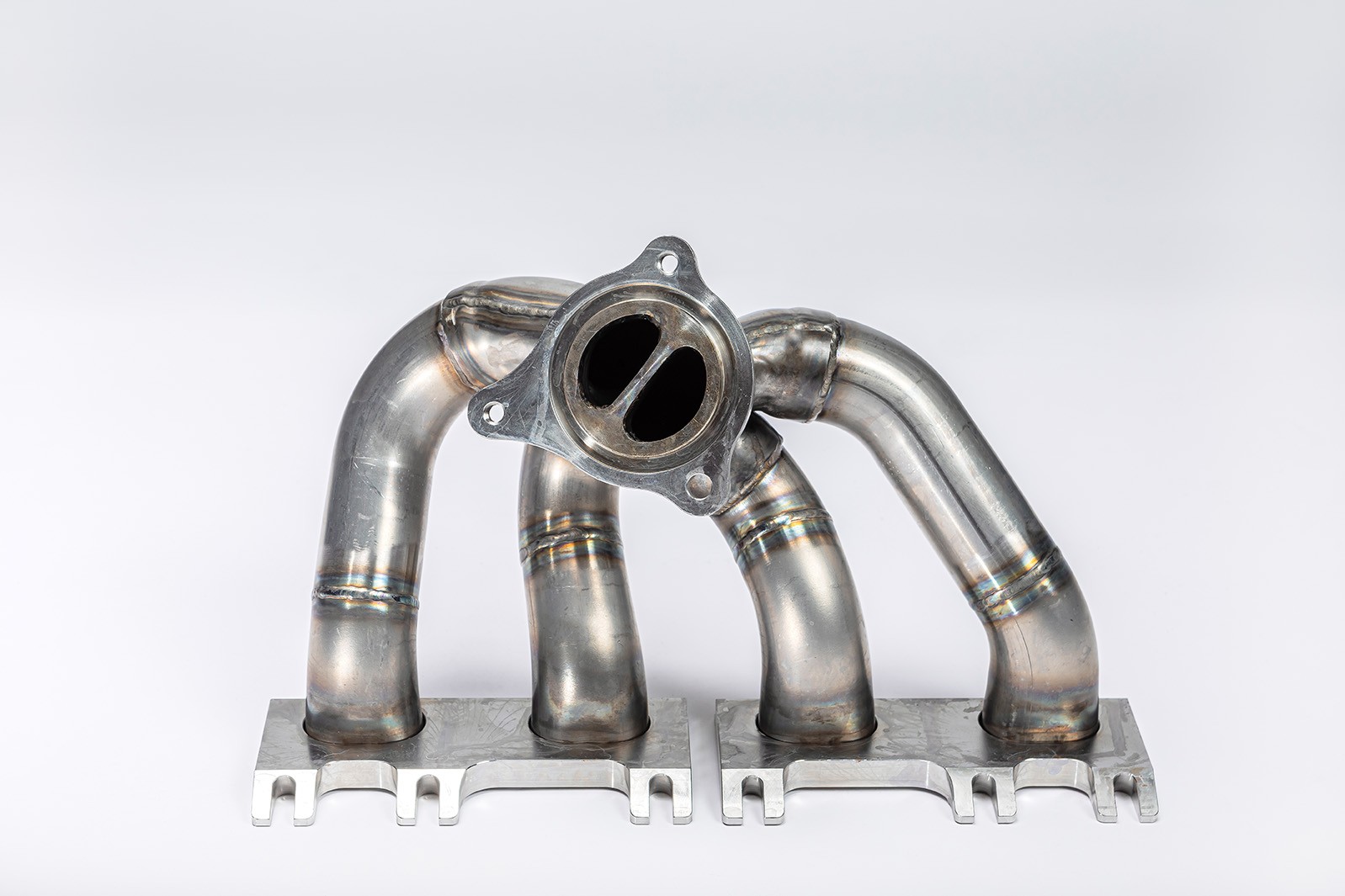

• Welding – TIG-, MIG-, MAG-, Laser-, Orbital-, Roboter- und Microwelding for complex assemblies.

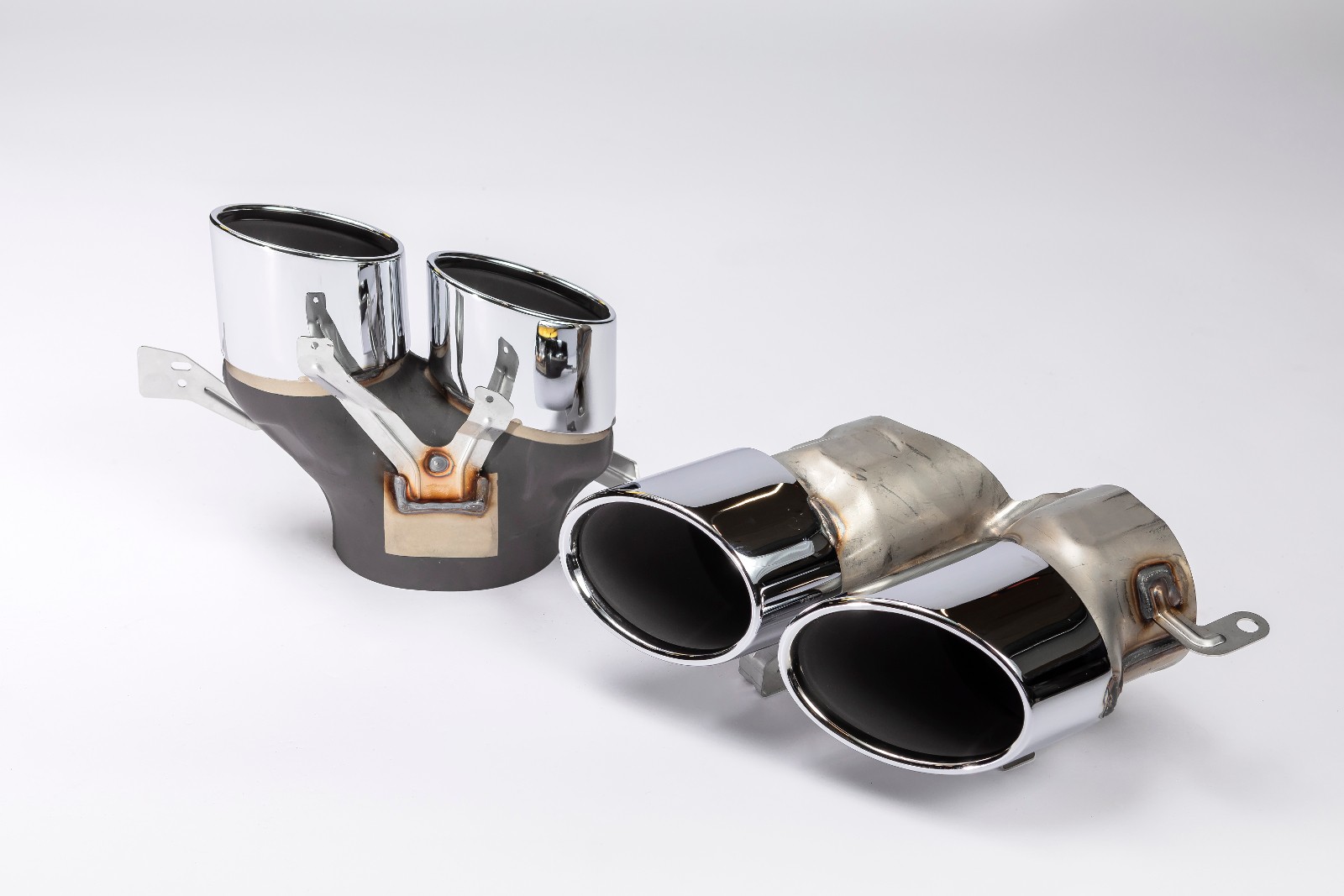

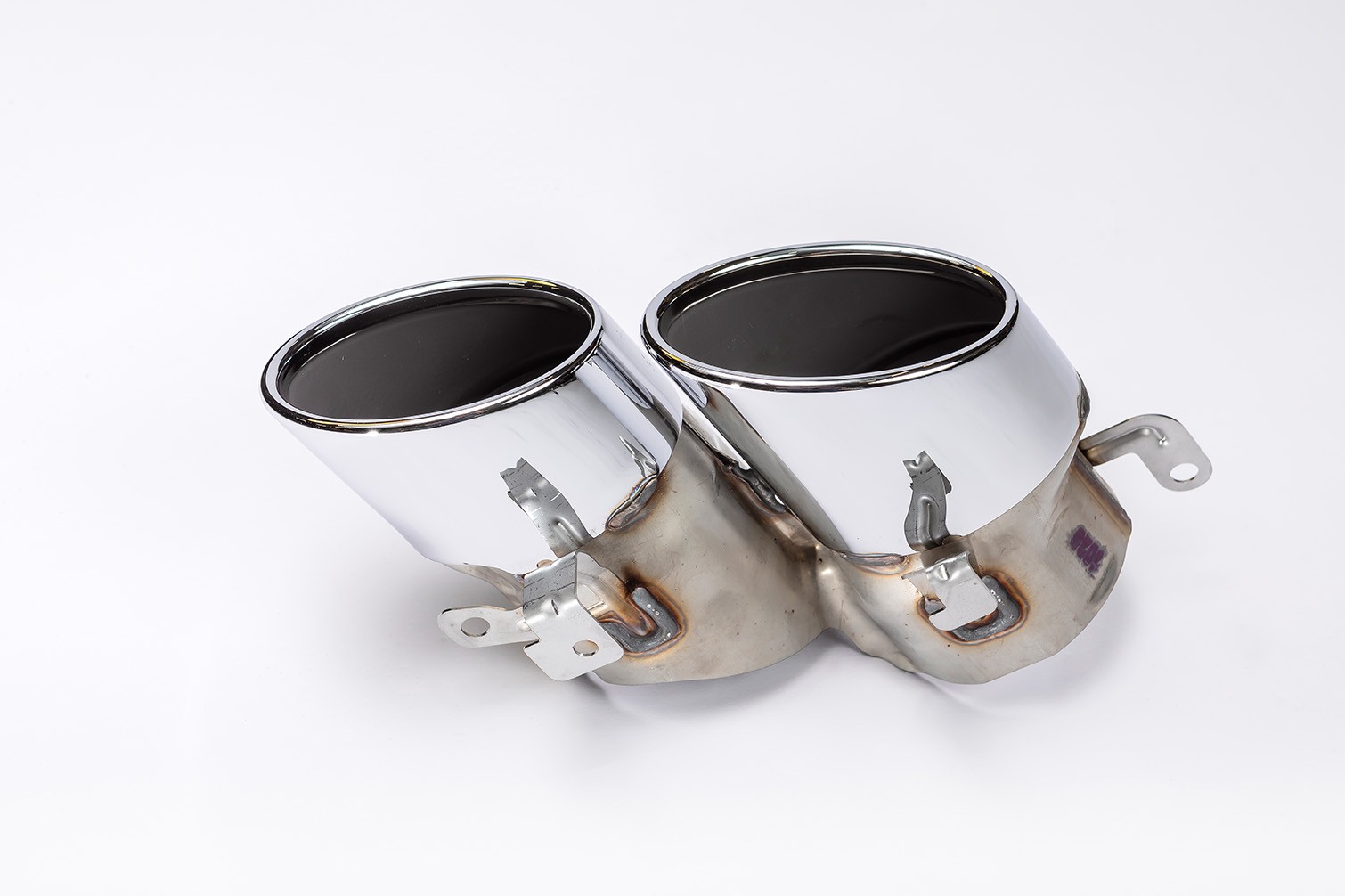

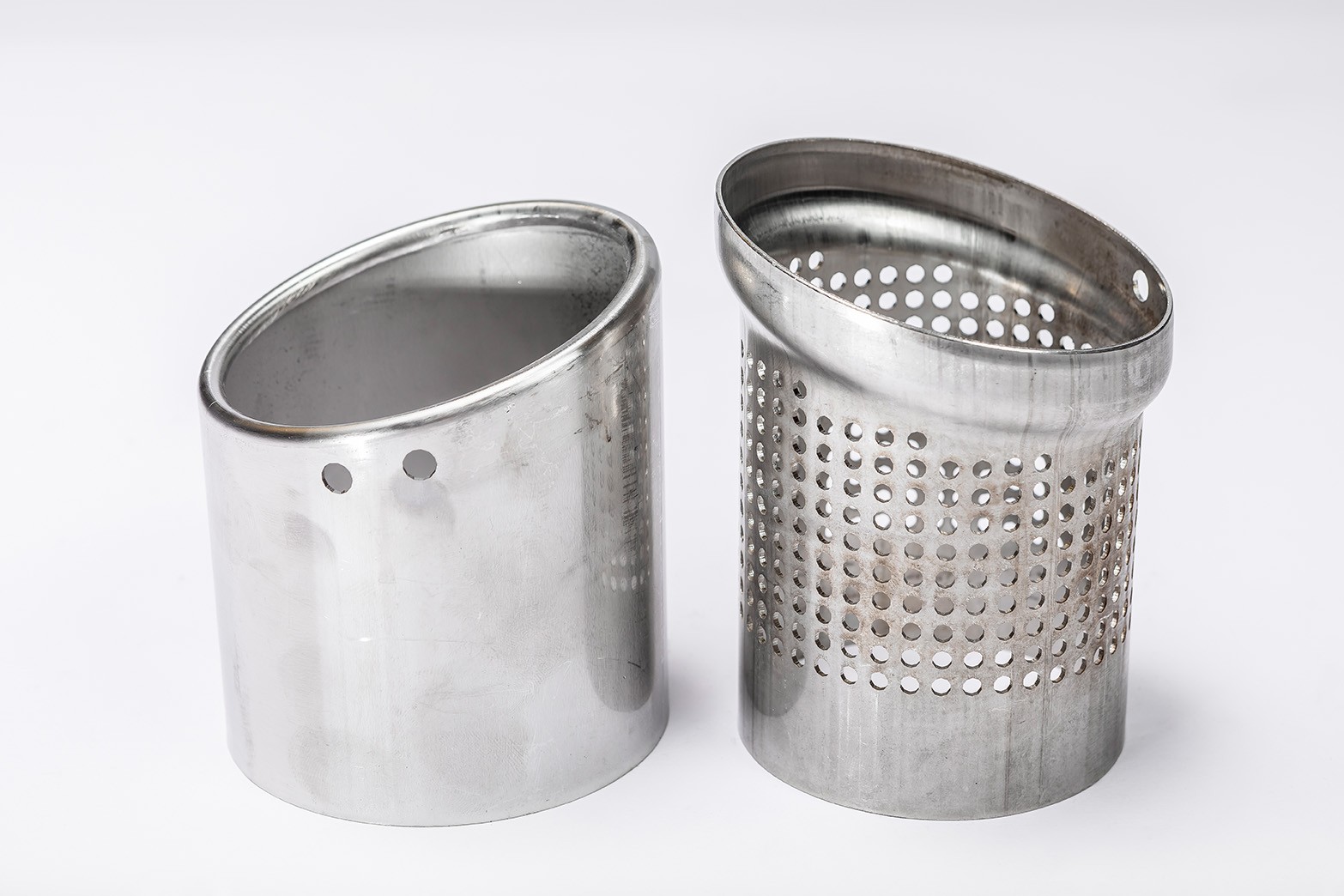

• Tube-end forming – Flaring, tapering, tulip-shaped, bicone and star-shaped formations, as well as the manufacture of high-quality tailpipe trims.

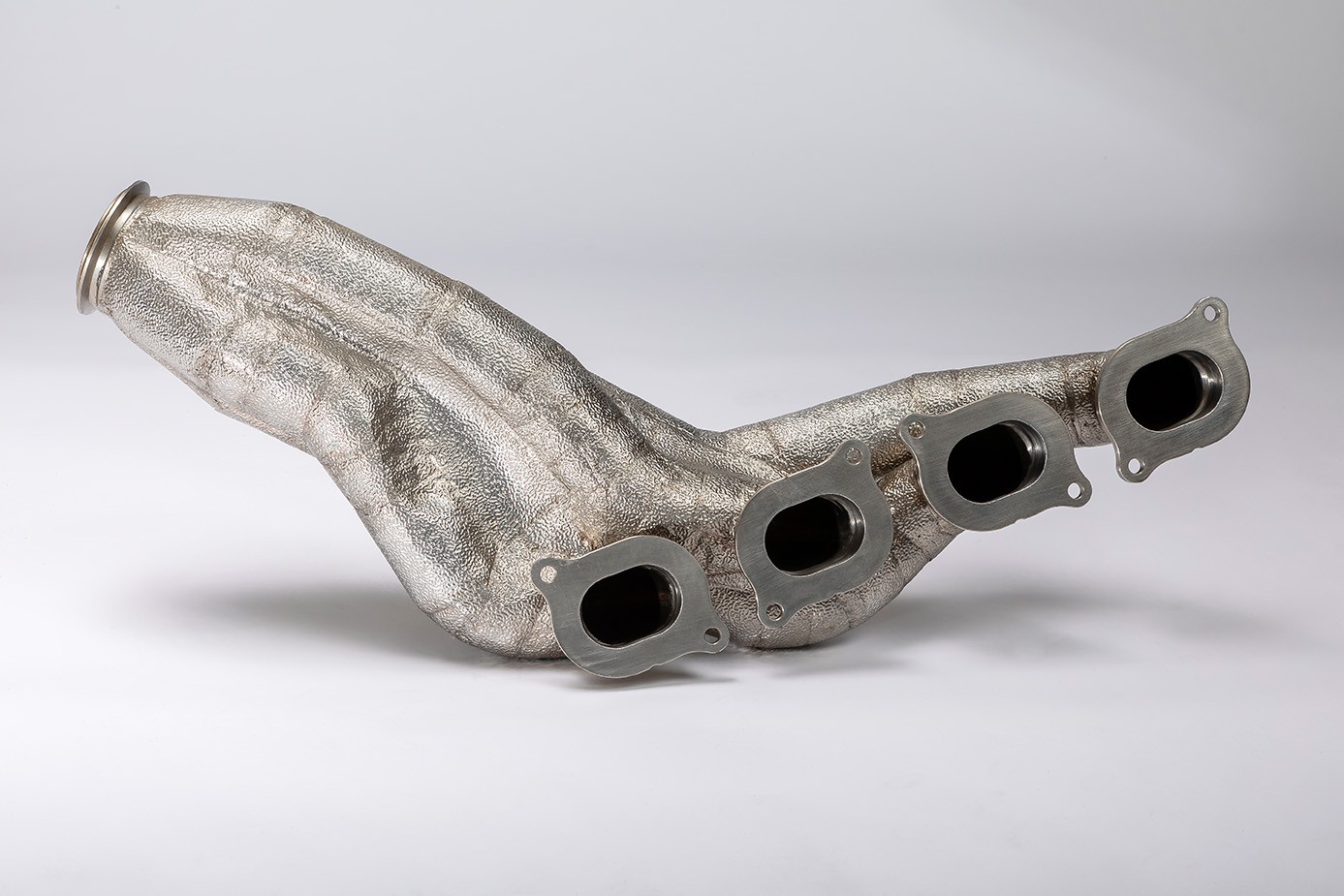

• Thermal insulation – Development and manufacture of high-performance heat shielding and insulation systems for applications subject to extreme thermal loads.

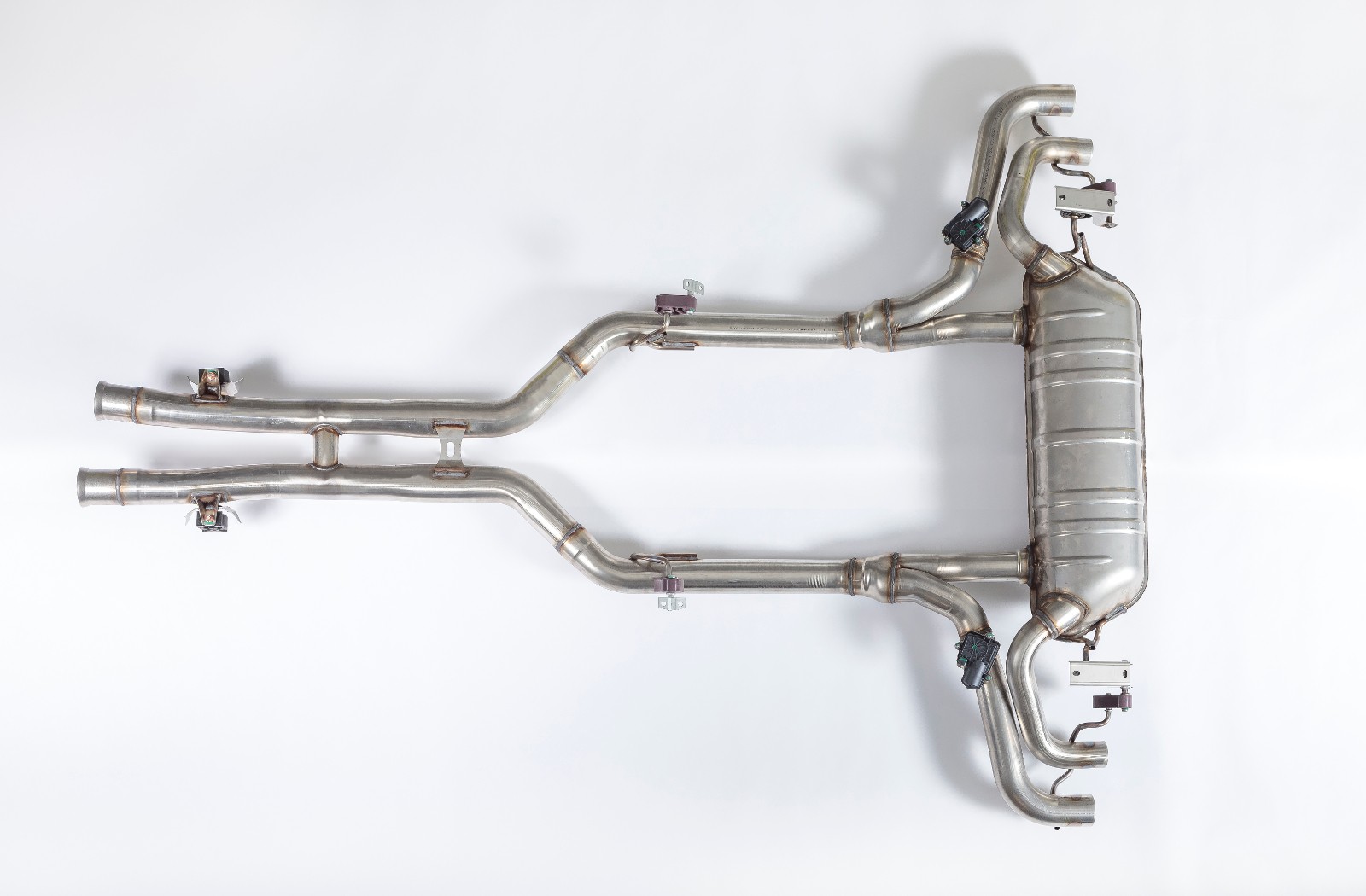

Particularly in the field of complex pipework and exhaust systems, our customers benefit from an exceptional level of in-house manufacturing capability. Tools, clamping devices and moulding dies are developed and manufactured in our own toolmaking department. This means that changes or optimisations can be implemented within a very short time – a decisive advantage in prototype construction and for last-minute project adjustments.

Through the use of state-of-the-art production equipment, digital process chains and qualified specialists, we guarantee consistently high precision, reproducible quality and cost-effective production processes – from individual parts and prototypes right through to series production.

This combination of engineering expertise, modern machinery and a high level of in-house production makes PTS a high-performing development partner and manufacturing specialist for sophisticated metal, tubular and system components, as well as assemblies

Quality as a corporate philosophy
Quality, precision and sustainability are integral parts of our corporate philosophy. Certified processes, state-of-the-art measurement technology and skilled staff ensure reproducible results – from the first prototype right through to series production.

In doing so, we also prioritise the responsible use of resources, energy-efficient manufacturing processes and cost-effective solutions for our customers.

Why PTS?
✔ Development, design and simulation from a single source

✔ High level of in-house production with our own toolmaking facility

✔ Rapid prototyping within a few weeks

✔ Series production with consistent quality

✔ Certifications to the very highest standards

✔ State-of-the-art manufacturing and measurement technology

✔ Many years’ experience in the automotive and industrial sectors

✔ A competent partner from concept to series production

Realising innovations together
Are you looking for an experienced development partner or a high-performance manufacturing specialist for complex tubular, sheet metal and metal components?

PTS Prototypenteile und Systemtechnik supports your project from the initial idea through to successful series production – with sound technical expertise, cost-effectiveness and the highest quality standards.
